PLUTO II OTH Radar

From Signal Identification Wiki
Jump to: navigation, search

PLUTO II OTH Radar
PLUTO II.png
Frequencies 8 MHz,38 MHz
Frequency Range 8 MHz - 38 MHz
Mode USB
Modulation FMCW
ACF
Emission Designator
Bandwidth 20 kHz,40 kHz
Location Cyprus
Short Description PLUTO II is an Over The Horizon Radar located in the Sovereign Base Area just outside RAF Akrotiri in Cyprus. PLUTO II is very active in Europe.
I/Q Raw Recording
Audio Sample

PLUTO II is an Over The Horizon Radar located in the UK Sovereign Base Area just outside the RAF Akrotiri base in Cyprus. Uses FMCW (Frequency Modulated Continuous Wave). PLUTO has been seen with sweeprates of 25 and 50 sweeps/sec even sometimes 12.5 sweeps/sec.

50 sweeps/sec with 20 kHzKiloHertz (kHz) 10^3 Hz bandwidth is the most commonly used mode. 25 sweeps/sec with 20 kHzKiloHertz (kHz) 10^3 Hz bandwidth is quite often used when propagation conditions are good, especially on higher frequencies. 12.5 sweeps/sec mode is rare and it is usually used with 40 kHzKiloHertz (kHz) 10^3 Hz bandwidth. Other sweep rates, bandwidths and their combinations may exist.

Like some other OTHOver The Horizon (very long range) radars, PLUTO II can operate multiple beams simultaneously on multiple frequencies.

PLUTO II can be confused with the 29B6 'Kontayner" radar but can be differentiated by its wider bandwidth, different sweep rate and "smoother" sound. Signal analysis will reveal FMCW operation.


Samples[edit]

RAW:

USBUpper Side Band Modulation (Radio, referring to reception and modulation mode)Universal Serial Bus (Computer, referring to USB Ports and cables):

50 Sweeps/Sec 25 Sweeps/Sec 12.5 Sweeps/Sec

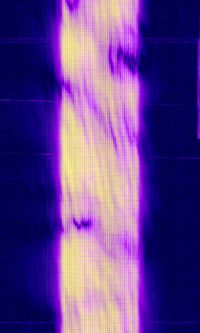

PLUTO 50 swps sec.png

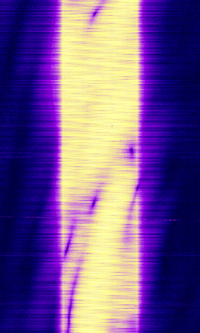

25 Hz PLUTO II.png

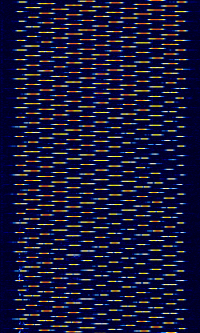

Pluto 12Hz.png

USBUpper Side Band Modulation (Radio, referring to reception and modulation mode)Universal Serial Bus (Computer, referring to USB Ports and cables) samples recorded with high bandwidth[edit]

50 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). sweep rate

25 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). sweep rate

12.5 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). sweep rate

USBUpper Side Band Modulation (Radio, referring to reception and modulation mode)Universal Serial Bus (Computer, referring to USB Ports and cables) samples recorded with more typical ham radio bandwidth (5 kHzKiloHertz (kHz) 10^3 Hz)[edit]

50 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). sweep rate

25 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). sweep rate

12.5 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). sweep rate

AMAmplitude Modulation samples, notice the smooth sound[edit]

50 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). sweep rate

25 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). sweep rate

12.5 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). sweep rate

FMFrequency Modulation samples[edit]

50 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). sweep rate

25 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). sweep rate

12.5 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). sweep rate
