Soyuz-MS spacecraft telemetry

RTS-9TS (РТС-9Ц) Russian spacecraft telemetry system

Frequencies	166 MHz,626 MHz,628 MHz,630 MHz,631 MHz,632 MHz,634 MHz
Frequency Range	166 MHz - 634 MHz
Mode	USB
Modulation	PCM,FM
ACF	—
Emission Designator	—
Bandwidth	250 kHz
Location	Worldwide
Short Description	Russian spacecraft telemetry system.
I/Q Raw Recording	—
Audio Sample

An old and widely used in the USSR/Russia telemetry system for spacecraft. Currently used on the Russian segment of the ISSInformation Sending Station in an ARQ link (The station sending information to the recipient). Usually the signal that's longer in duration than the short RQ (Repeat Request) bursts from the IRS., Soyuz/Progress spacecraft, and Meteor meteorological satellites. Telemetry transmission is usually switched on only within the visibility range of Russian tracking stations; in the case of the ISSInformation Sending Station in an ARQ link (The station sending information to the recipient). Usually the signal that's longer in duration than the short RQ (Repeat Request) bursts from the IRS., streams may not be active from every module at the same time.

Additional Links

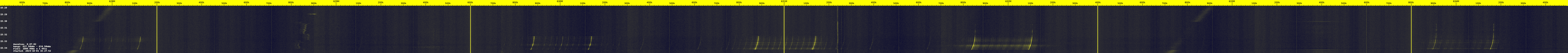

Media:633 ISS.png rtr_power waterfall with all telemetry streams from the ISSInformation Sending Station in an ARQ link (The station sending information to the recipient). Usually the signal that's longer in duration than the short RQ (Repeat Request) bursts from the IRS. enabled.

http://www.svengrahn.pp.se/radioind/pcmfm/pcmfm.htm

http://www.svengrahn.pp.se/histind/Soyuz1Land/SoyRadio.htm

http://www.svengrahn.pp.se/radioind/mirradio/mirradio.htm

http://niskgd.ru/pages/selena-m/MA-9MKTM-4.pdf

Frequencies

• 166 MHzMegaHertz (MHz) 10^6 Hz - Soyuz/Progress spacecraft
• 626 MHzMegaHertz (MHz) 10^6 Hz - Meteor M2-3/4
• 628/630 MHzMegaHertz (MHz) 10^6 Hz - Zvezda - ISSInformation Sending Station in an ARQ link (The station sending information to the recipient). Usually the signal that's longer in duration than the short RQ (Repeat Request) bursts from the IRS. Service Module
• 631 MHzMegaHertz (MHz) 10^6 Hz - Nauka - ISSInformation Sending Station in an ARQ link (The station sending information to the recipient). Usually the signal that's longer in duration than the short RQ (Repeat Request) bursts from the IRS. Module
• 632/634 MHzMegaHertz (MHz) 10^6 Hz - Zarya - ISSInformation Sending Station in an ARQ link (The station sending information to the recipient). Usually the signal that's longer in duration than the short RQ (Repeat Request) bursts from the IRS. Control Module

Additional Images

Telemetry switch

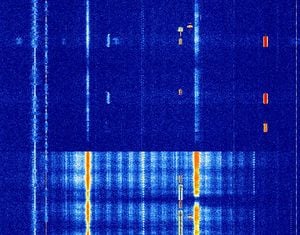

<---- Change in telemetry signal at the moment of separation of the 3rd stage of the Soyuz spacecraft.

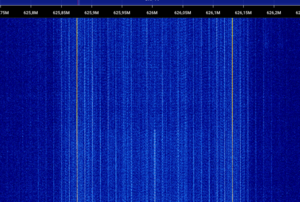

<---- Telemetry from Meteor satellite.

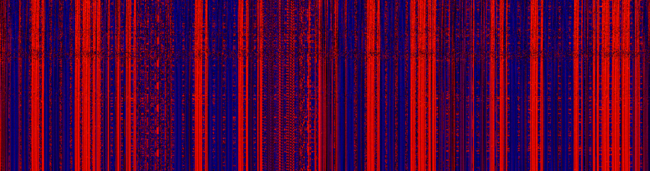

<---- Content of Nauka ISSInformation Sending Station in an ARQ link (The station sending information to the recipient). Usually the signal that's longer in duration than the short RQ (Repeat Request) bursts from the IRS. module telemetry.
