SiriusXM Satellite Radio
XM Sattelite Radio.PNG
Frequencies 2332.5 MHz,2345 MHz
Frequency Range 2332.5 MHz - 2345 MHz
Mode RAW
Modulation OFDM,PSK
ACF
Emission Designator
Bandwidth 12.5 MHz
Location United States
Short Description SiriusXM Satellite Radio: Terrestrial Repeater Signal
I/Q Raw Recording
Audio Sample

SiriusXM Satellite Radio: Terrestrial Repeater Signal.

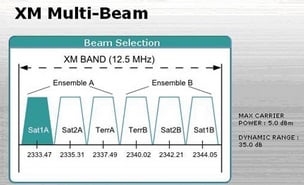

These 2 pair signals are the pair of terrestrial repeaters for SiriusXM Satellite Radio, TerrA and TerrB.

Ss (2015-03-18 at 11.04.03).jpg

Modulation[edit]

Coded Orthogonal Frequency Division Multiplexing: Differential Quadrature Phase Shift Keying (COFDMCoded Orthogonal Frequency-Division Multiplexing-DQPSKDifferential Quadrature Phase-Shift Keying)


Decoding Software[edit]

Only way to decode the signal is to use a SiriusXM Radio.

Additional Links[edit]

Mathworks Satellite Radio
