Q65
Frequencies 50.275 MHz,50.305 MHz,144.17 MHz
Frequency Range 50.275 MHz - 144.17 MHz
Mode USB
Modulation MFSK
ACF
Emission Designator
Bandwidth 19 Hz,38 Hz,49 Hz,75 Hz,150 Hz,195 Hz,301 Hz,390 Hz,780 Hz,108 Hz,217 Hz,433 Hz,867 Hz,1.733 kHz,98 Hz
Location Worldwide
Short Description Q65 is a 65-FSK extreme weak-signal mode which is designed for Earth-Moon-Earth communications and fast-fading propagation modes such as tropospheric scatter, rain scatter and trans-equatorial propagation. It offers a variety of submodes. Q65 is part of the WSJT-X software.
I/Q Raw Recording
Audio Sample

Q65 is a 65-FSKFrequency-Shift Keying extreme weak-signal communications mode which is designed for Earth-Moon-Earth communications and fast-fading propagation modes such as tropospheric scatter, rain scatter and trans-equatorial propagation. It is part of the WSJT-X software. Like other WSJT-X modes such as FT8 and JT65, Q65 only carries the minimal amount of information needed to make contacts (QSO's).

Q65 offers a variety of submodes with different tone spacing, and transmit/receive slot lengths from 15 to 300 seconds. The default submode is Q65-30A. Q65 decoder can average over several receive windows to decode weak signals.

Q65 submodes
Submode Symbol length Tone spacing Bandwidth Transmission duration Minimum SNR for decoding
Q65-15A 0.15 s 6.67 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 433 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 12.8 s -22.2 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-15B 0.15 s 13.33 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 867 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 12.8 s -22.2 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-15C 0.15 s 26.67 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 1733 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 12.8 s -22.2 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-30A 0.30 s 3.33 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 217 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 25.5 s -24.8 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-30B 0.30 s 6.67 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 433 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 25.5 s -24.8 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-30C 0.30 s 13.33 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 867 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 25.5 s -24.8 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-30D 0.30 s 26.67 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 1733 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 25.5 s -24.8 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-60A 0.60 s 1.67 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 108 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 51.0 s -27.6 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-60B 0.60 s 3.33 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 217 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 51.0 s -27.6 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-60C 0.60 s 6.67 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 433 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 51.0 s -27.6 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-60D 0.60 s 13.33 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 867 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 51.0 s -27.6 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-60E 0.60 s 26.67 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 1733 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 51.0 s -27.6 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-120A 1.33 s 0.75 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 49 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 113.3 s -30.8 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-120B 1.33 s 1.50 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 98 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 113.3 s -30.8 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-120C 1.33 s 3.00 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 195 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 113.3 s -30.8 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-120D 1.33 s 6.00 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 390 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 113.3 s -30.8 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-120E 1.33 s 12.0 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 780 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 113.3 s -30.8 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-300A 3.46 s 0.29 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 19 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 293.8 s -33.8 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-300B 3.46 s 0.58 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 38 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 293.8 s -33.8 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-300C 3.46 s 1.16 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 75 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 293.8 s -33.8 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-300D 3.46 s 2.31 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 150 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 293.8 s -33.8 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.
Q65-300E 3.46 s 4.63 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 301 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). 293.8 s -33.8 dBThe decibel (dB) is a logarithmic unit used to express the ratio of two values of a physical quantity, here the strength of a received signal.

Note that submodes Q65-15D, Q65-15E and Q65-30E do not exist.

Samples[edit]

The showcase sample is Q65-30A. These samples were recorded directly from WSJT-X. If you have samples of actual Q65 transmissions, please add them here!

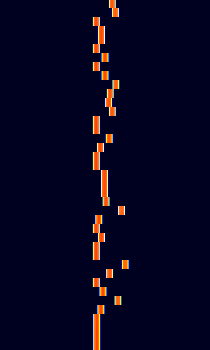

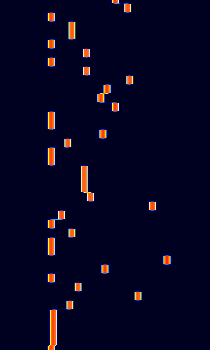

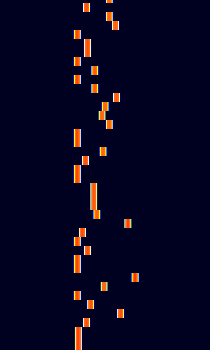

Q65-30A Q65-30B Q65-30C Q65-30D

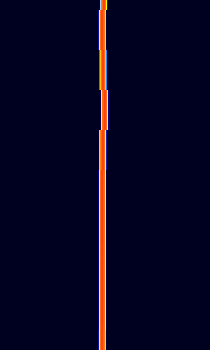

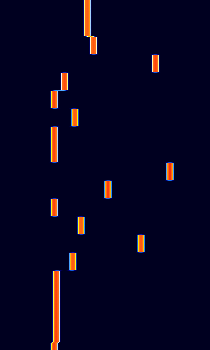

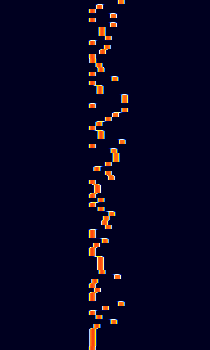

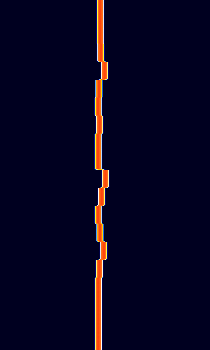

Q65-15A Q65-60A Q65-60E Q65-120A

Frequencies[edit]

Some known frequencies for Q65 use include 50.275 MHzMegaHertz (MHz) 10^6 Hz, 50.305 MHzMegaHertz (MHz) 10^6 Hz and 144.170 MHzMegaHertz (MHz) 10^6 Hz. It might be found on EME frequencies, and frequencies used for tropospheric scatter and similar propagation modes.

Decoding Software[edit]

WSJT-X
