MSK144
From Signal Identification Wiki
 | |
|---|---|
| Frequencies | 144 MHz,440 MHz,50 MHz,70 MHz,30 MHz |
| Frequency Range | 30 MHz - 440 MHz |
| Mode | FM |
| Modulation | MSK |
| ACF | 72 ms |
| Emission Designator | — |
| Bandwidth | 2.5 kHz |
| Location | Worldwide |
| Short Description | MSK144 is a Minimum Shift Keying FSK signal used for amateur radio meteor-scatter contacts. It transmits 144 bit long packets at a baudrate of 2000 bps using frequencies 1000 and 2000 Hz. |
| I/Q Raw Recording | — |
| Audio Sample | |
MSK144 is a Minimum Shift Keying FSKFrequency-Shift Keying signal used for amateur radio meteor-scatter contacts. It transmits 144 bit long packets at a baudrate of 2000 bpsBits per second (bps) using frequencies 1000 and 2000 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz).. It is part of the WSJT-X suite, developed by Joe Taylor K1JT and others.
Samples[edit]

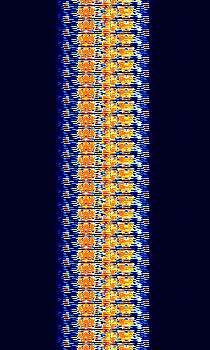

| MSK144 USBUpper Side Band Modulation (Radio, referring to reception and modulation mode)Universal Serial Bus (Computer, referring to USB Ports and cables) sample, recorded directly from WSJT-X and low-pass filtered |
|---|
 |
PDF's on the latter signal[edit]
- https://physics.princeton.edu/pulsar/k1jt/MSK144_Protocol_QEX.pdf
- https://www.contestuniversity.com/wp-content/uploads/2018/05/5.-W5ZN-Utilizing-Digital-Modes-FT8-and-MSK144-for-Competitive-Advantage-in-VHF-Contests.pdf
