F07 number station
 | |
|---|---|
| Frequencies | 5 MHz,17.5 MHz |
| Frequency Range | 5 MHz - 17.5 MHz |
| Mode | USB |
| Modulation | MFSK,BPSK,FSK |
| ACF | — |
| Emission Designator | — |
| Bandwidth | 4 kHz |
| Location | Russia |
| Short Description | F07 is a Russian digital number station known for using multiple modulation types, including MFSK, BPSK and FSK. |
| I/Q Raw Recording | — |
| Audio Sample | |
F07 is a Russian digital number station that is active every Tuesday and Thursday. It is known for using multiple modulation types, including 5 seperate MFSKMultiple Frequency Shift-Keying data bursts, each divided by either BPSKBinary Phase-Shift Keying (1 bit per symbol) data or carrier tones. All, if not most of these transmissions have been documented in the past. It is for that reason that we have an exact schedule of each transmission that can be seen on the Priyom website (link down in the description).
Samples[edit]
| Standard F07 transmission, empty report |
|---|
| |
Frequencies[edit]
F07 transmits between a range of 5 MHzMegaHertz (MHz) 10^6 Hz to 17.5 MHzMegaHertz (MHz) 10^6 Hz. Most frequencies and schedules have been documented and can be found at https://priyom.org/number-stations/digital/f07/schedule .
Video Examples[edit]
- F07 Data Mode 14/02/2023 2100 To 2150 UTC 6 Different Frequencies
- F07, Number Station, 14.02.2023 21:00 UTC
Additional Links[edit]
https://priyom.org/number-stations/digital/f07/schedule https://priyom.org/number-stations/digital/f07

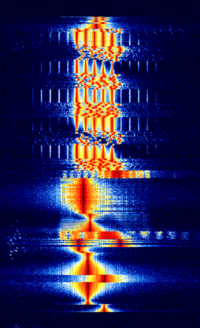

Additional Images[edit]
|
|
