COFDMTV
Mode SSB,FM,AM
Modulation COFDM,8-PSK,QPSK
ACF
Emission Designator
Bandwidth 1.6 kHz,2.5 kHz,2.7 kHz,3.2 kHz,2.25 kHz,2.4 kHz
Location
Short Description COFDMTV is an easy-to-use picture transmission mode based on Coded Orthogonal Frequency-Division Multiplexing (COFDM).
I/Q Raw Recording
Audio Sample

The modes below use a 2/3-rate shortened systematic polar code and are differentially modulated:

using SPC(64800, 43072):

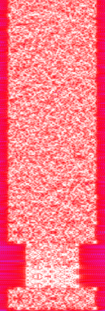

mode 6: 8PSK8-Phase Phase-Shift Keying (3 bits per symbol), 2700 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). BW and about 10 seconds long

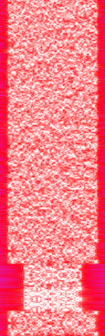

mode 7: 8PSK8-Phase Phase-Shift Keying (3 bits per symbol), 2500 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). BW and about 11 seconds long

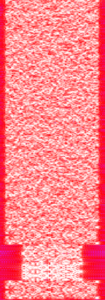

mode 8: QPSKQuadrature Phase-Shift Keying (2 bits per symbol), 2500 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). BW and about 16 seconds long

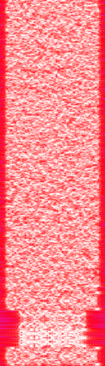

mode 9: QPSKQuadrature Phase-Shift Keying (2 bits per symbol), 2250 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). BW and about 18 seconds long


using SPC(64512, 43072):
mode 10: 8PSK8-Phase Phase-Shift Keying (3 bits per symbol), 3200 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). BW and about 9 seconds long

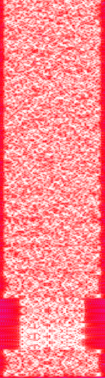

mode 11: 8PSK8-Phase Phase-Shift Keying (3 bits per symbol), 2400 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). BW and about 11 seconds long

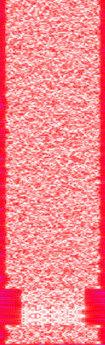

mode 12: QPSKQuadrature Phase-Shift Keying (2 bits per symbol), 2400 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). BW and about 16 seconds long

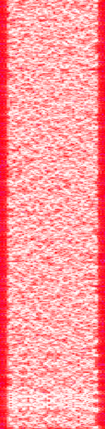

mode 13: QPSKQuadrature Phase-Shift Keying (2 bits per symbol), 1600 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). BW and about 24 seconds long

The modes allow for a payload of up to 5380 bytes. COFDMTV is based on COFDMCoded Orthogonal Frequency-Division Multiplexing (coded orthogonal frequency-division multiplexing) technology:


  • 160 msmilliseconds (.001 of a second) long OFDMOrthogonal Frequency-Division Multiplexing symbols
  • 6.25 HzHertz (Hz), unit of frequency, defined as one cycle per second (1 Hz). per sub-carrier
  • 1⁄8 guard interval
  • Differentially encoded PSKPhase-Shift Keying (phase-shift keying) modulation
  • Systematic polar codes for forward error correction





Frequencies[edit]

This mode is often used on UHFCB, PMR446, and FRS.
